Masung Kiosk Printer MS-EP8300, Kiosk Receipt Printer 80mm with Automatic Full/Partial Cutter

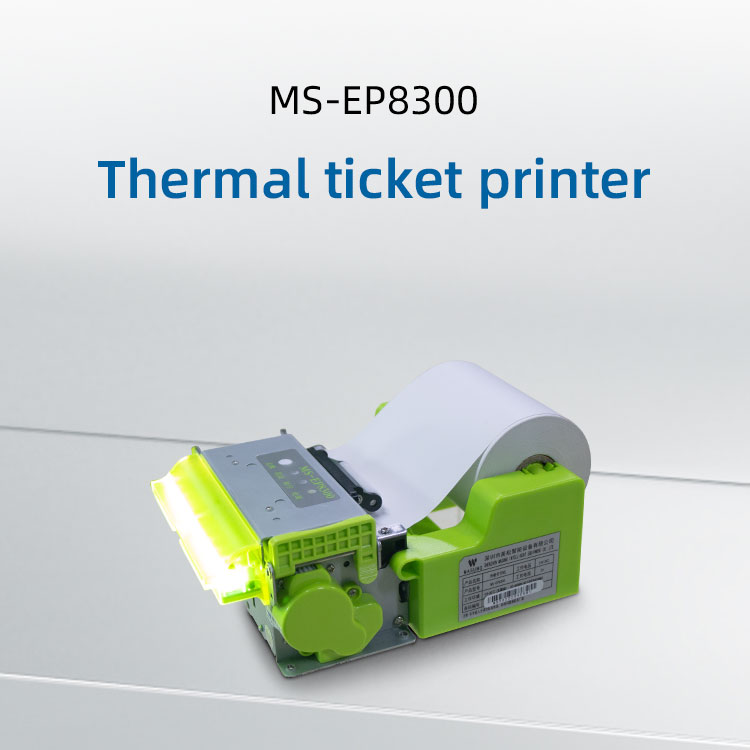

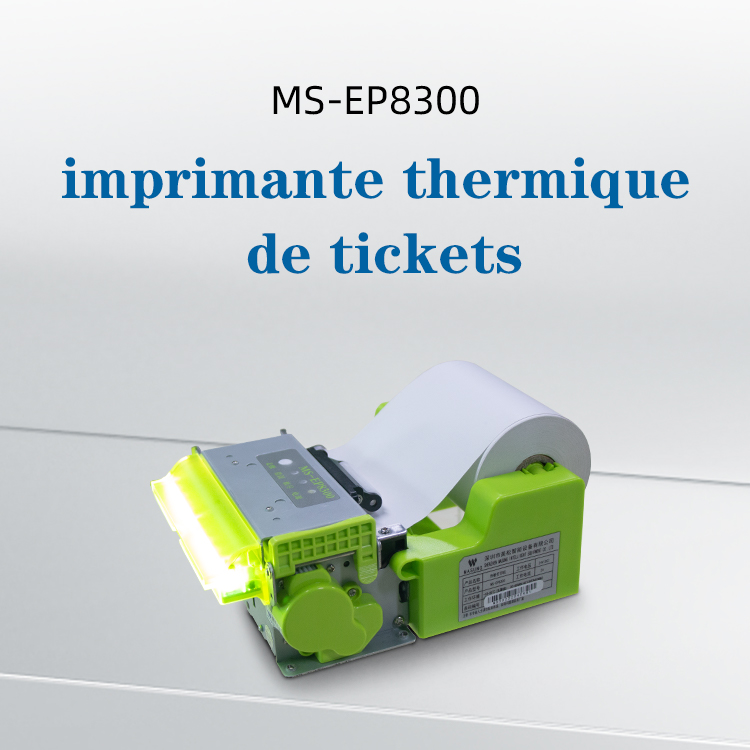

The MS-EP8300 is an ultra-high-speed, compact 80 mm embedded thermal printer for kiosks with 2 configurable versions.

Standard Version Features:

  1. Adjustable printing speed: 200 mm/s low speed, 300 mm/s high speed (for plain text).
  2. Ultra-low body height of 62.8 mm, suitable for various confined spaces.
  3. Side-opening printer cover for convenient and quick maintenance and paper replacement.

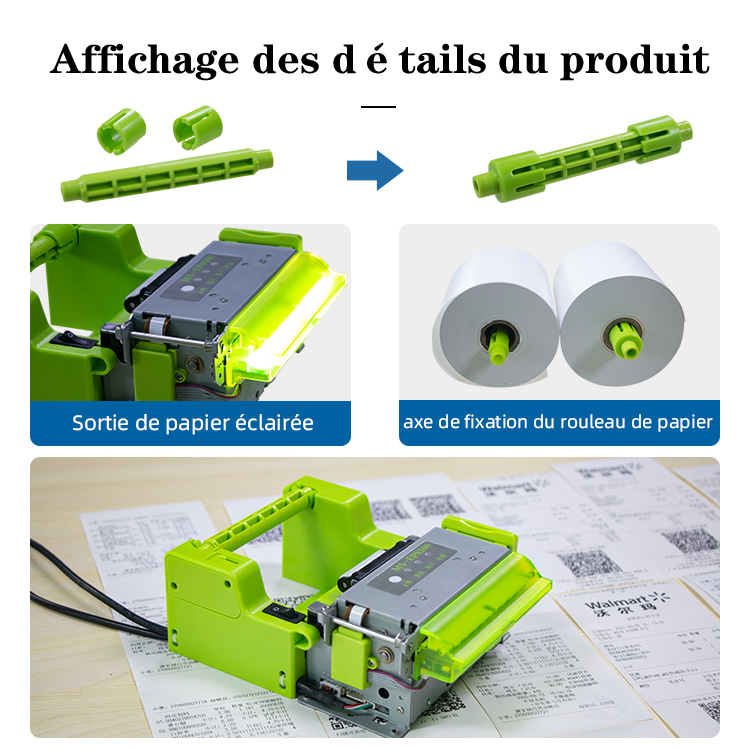

  4. The paper feed buffer wheel design ensures no distortion during high-speed printing.

High-End Version Features:

  1. Includes all features of the standard version.

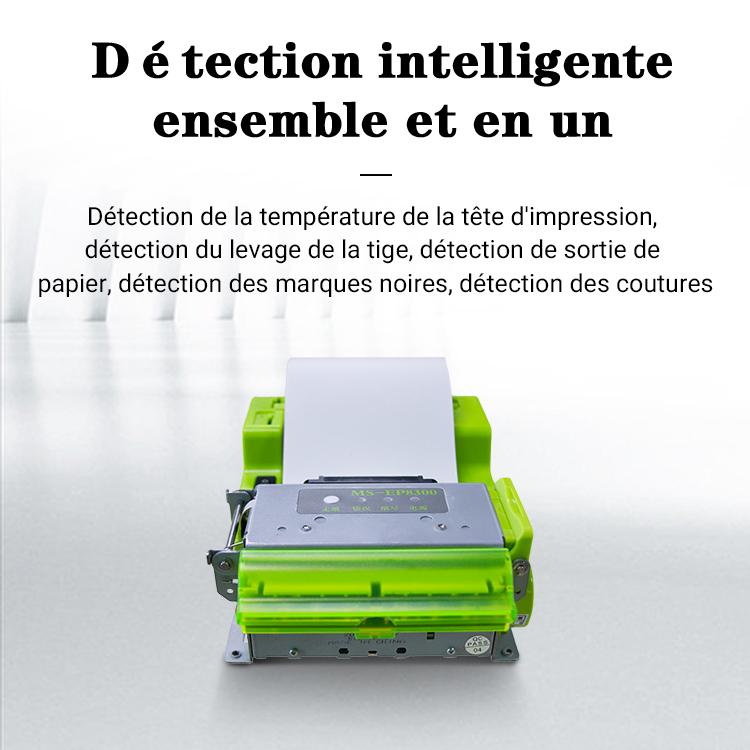

  2. Added a paper jam detection function to prevent paper jams.

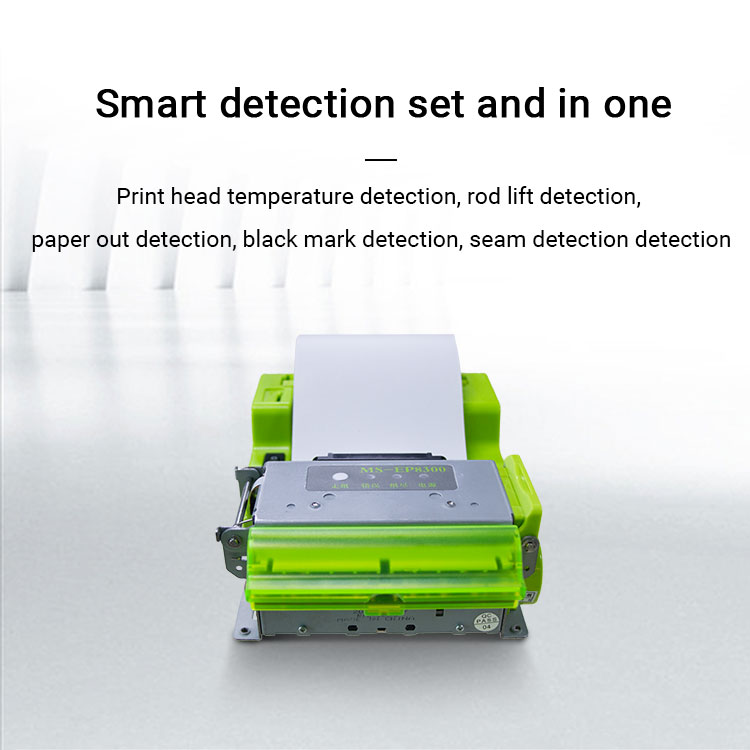

  3. Added a paper output detection function, clearly showing whether the paper has been removed.

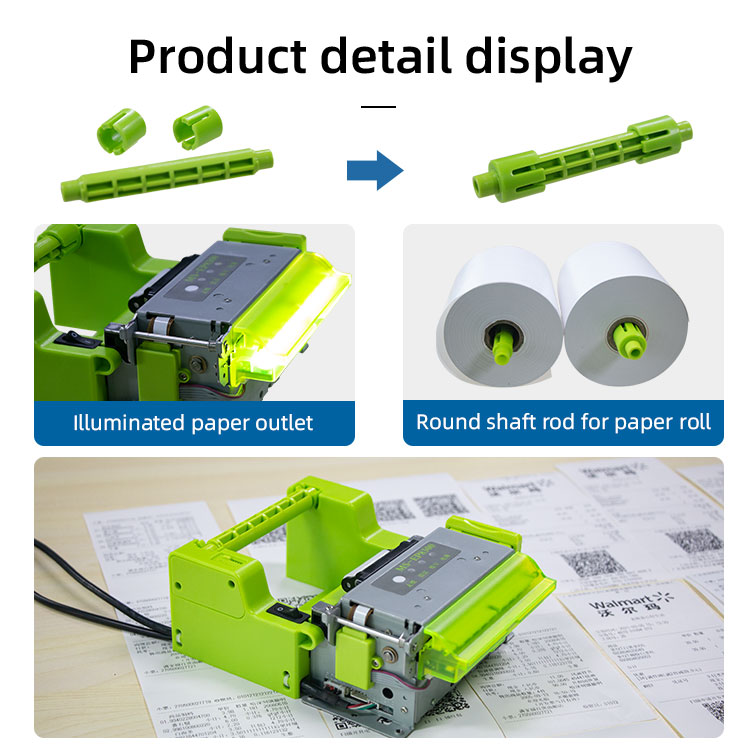

  4. Added a high-brightness light strip for status indication and warning.

Inquire

SKU: MS-EP8300 分类: 标签: , 品牌:

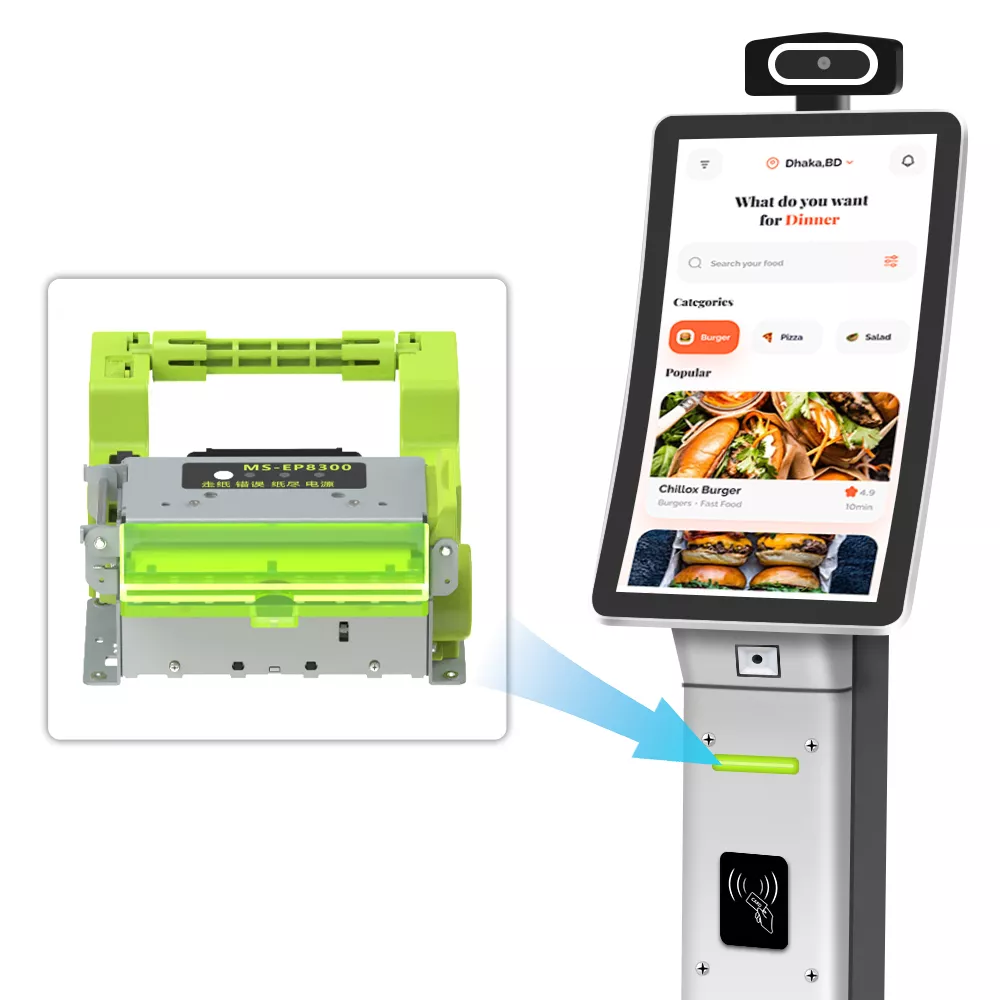

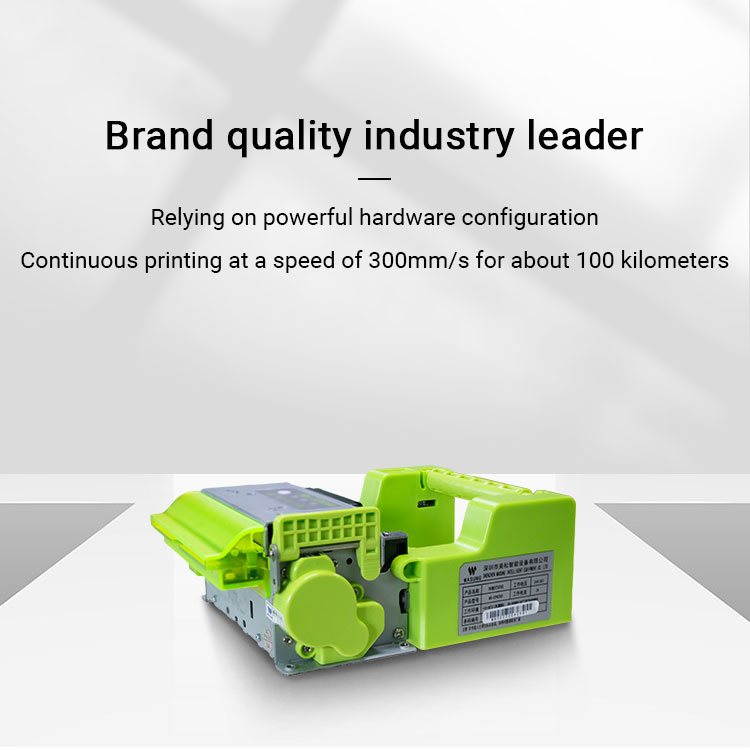

The MS-EP8300 is a high-performance kiosk printer engineered for the relentless demands of self-service automation. Built as a compact and robust kiosk printer module, it delivers exceptional reliability with a printing life of 100 km and a cutter rated for one million cuts. Its streamlined design allows for seamless integration into a wide array of interactive systems, making it the core component for any modern unattended solution.

Experience blazing-fast transaction times with industry-leading print speeds of up to 300 mm/s. This kiosk receipt printer produces crisp, 203 DPI receipts and tickets on demand, efficiently handling paper widths up to 80 mm. Whether dispensing a purchase confirmation, a queue ticket, or a detailed voucher, this kiosk ticket printer ensures a swift and professional user experience, reducing wait times and enhancing customer satisfaction.

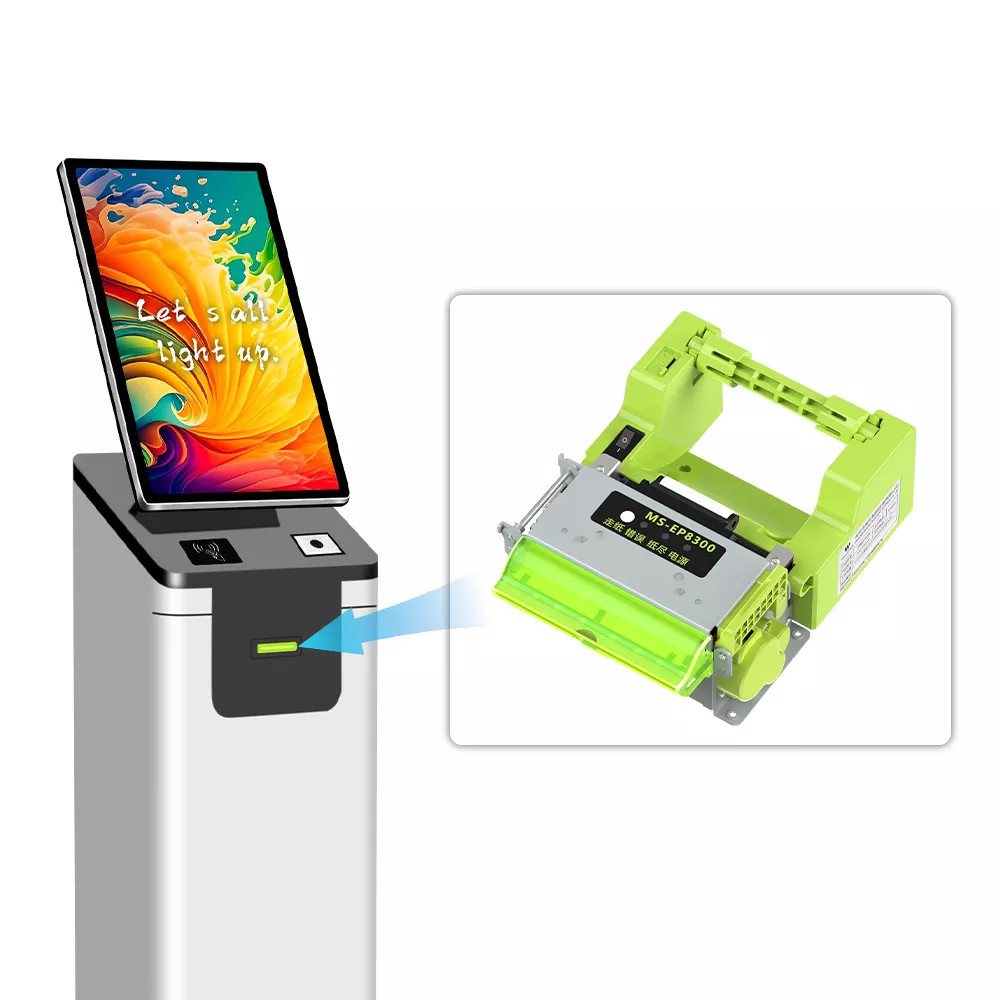

We understand that integration requirements vary, which is why the MS-EP8300 is designed to be the foundation for custom kiosk printers. Its standard interfaces, including USB and RS232, provide flexible connectivity options for system builders. The top-opening paper feed and versatile cutting options (full or half cut) further allow for adaptation to specific spatial and functional requirements within your unique kiosk enclosure.

Durability is paramount in unattended environments, and this kiosk printer module is built to last. It operates flawlessly across a wide range of temperatures and humidity levels, ensuring consistent performance in indoor public spaces. Weighing only 0.7 kg with a minimal footprint, this reliable kiosk receipt printer is the ultimate plug-and-play printing engine designed to empower your self-service technology for years to come.

MS-EP8300

MS-EP8300 MS-EP8300 MS-EP8300  MS-EP8300



重量 1.4 磅
尺寸 6.3 × 4.8 × 2.3 英寸

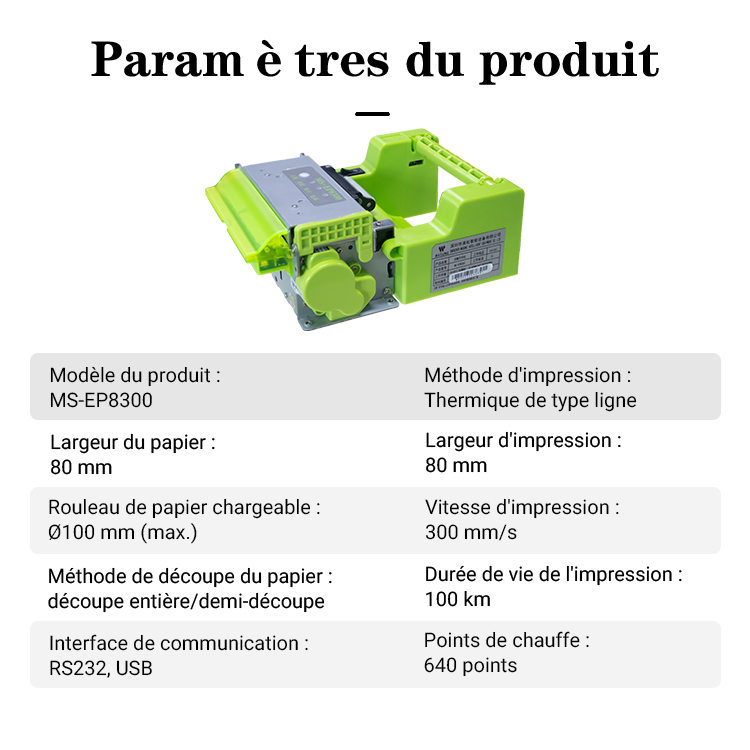

Model

MS-EP8300

Printing Method

Linear Thermal Printing

Resolution

203 DPI

Number of Heating Dots

640 dots

Maximum Print Width

80 mm

Printing Speed

Low Speed ​​200 mm/s, High Speed ​​300 mm/s

Paper Width

80 mm

Paper Thickness

60 – 150 μm

Maximum Paper Roll Diameter

100 mm

Paper Loading Method

Automatic Paper Feed/Open-Top Paper Loading

Paper Cutting Method

Full Cut/Half Cut

Printing Life

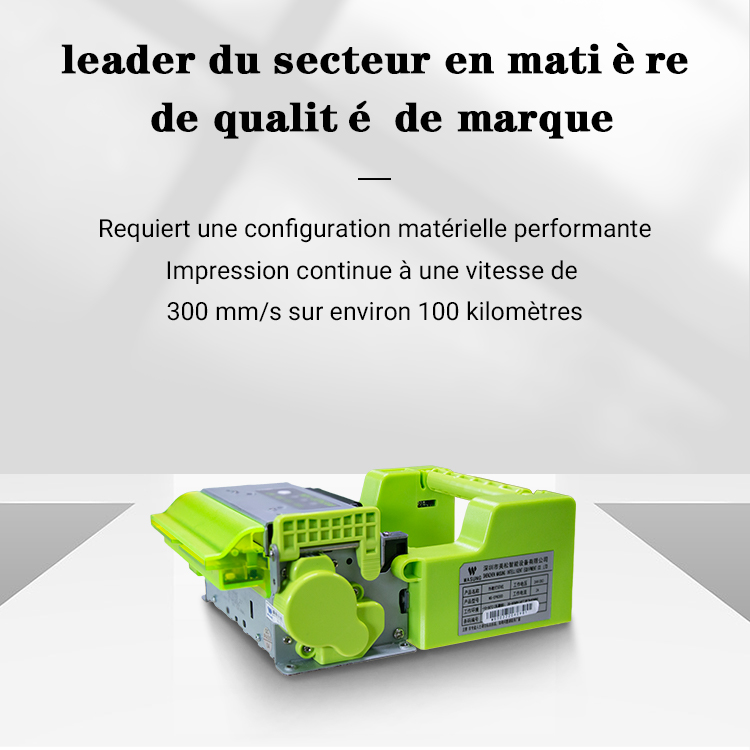

100 km

Operating Voltage

24 ± 5% V

Standby Current

35 mA

Printing Current

1 A – 3 A (depending on content, speed, and density)

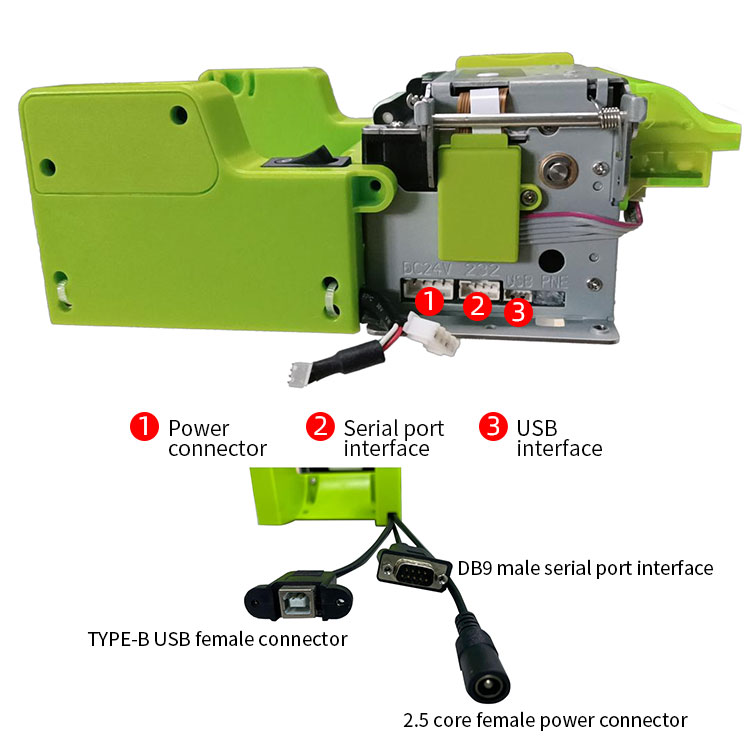

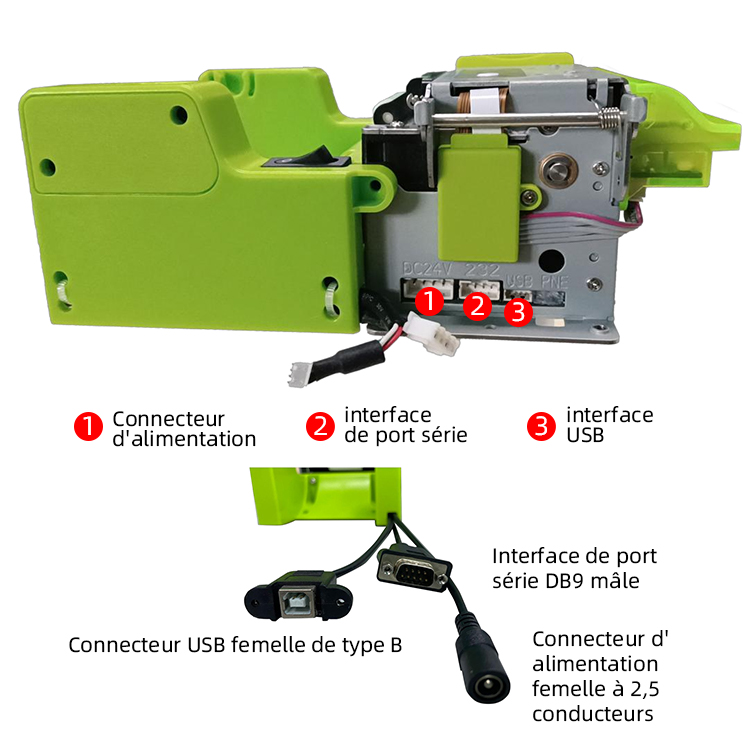

Standard Interfaces

Power Supply, RS232, USB

Operating Temperature

0 ~ 50℃ (Non-condensing)

Operating Humidity

20% ~ 80%RH (Non-condensing)
